jean-luc fugier: parking attendant's pavilion

  'parking attendant's pavilion' by jean-luc fugier, aix en provence, france
  image ? philippe piron

  french based architect jean-luc fugier has sent us images of 'local gardien du parc relais des pinchinats', a parking
  attendent's pavilion for the city of aix en provence, france. the increased prevalence of outer fringe deposits at public
  transport locations required a prototype solution to streamline the payment process for speed and efficiency and
  temporary housing for the employee on duty. the form's rectilinear footprint is gently twisted as it rises vertically,
  rotating to guide visitors towards the kiosk. the structure controls the entry and exit point while providing surveillance
  of the park during the day.

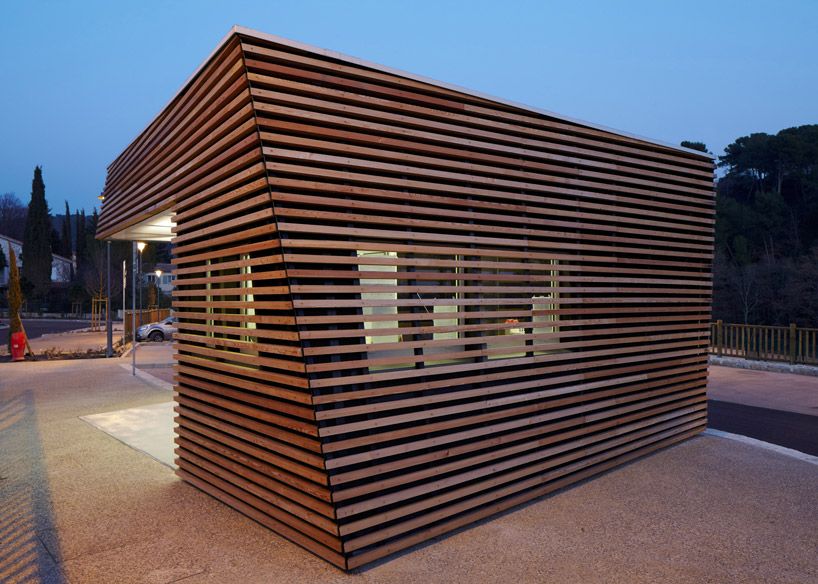

  southwest corner and south elevation
  image ? philippe piron

  strips of lumber are wrapped horizontally around the perimeter securing ground level windows and regulating
  thermal gain along the south facing elevations. planed larch planks are spaced at even intervals and aligned
  from surface to surface. components are joined at the inclined corners or concealed with edging at the payment
  entrance. above the ticket machines, a wooden canopy extends to protect customers with integrated lighting
  at night.

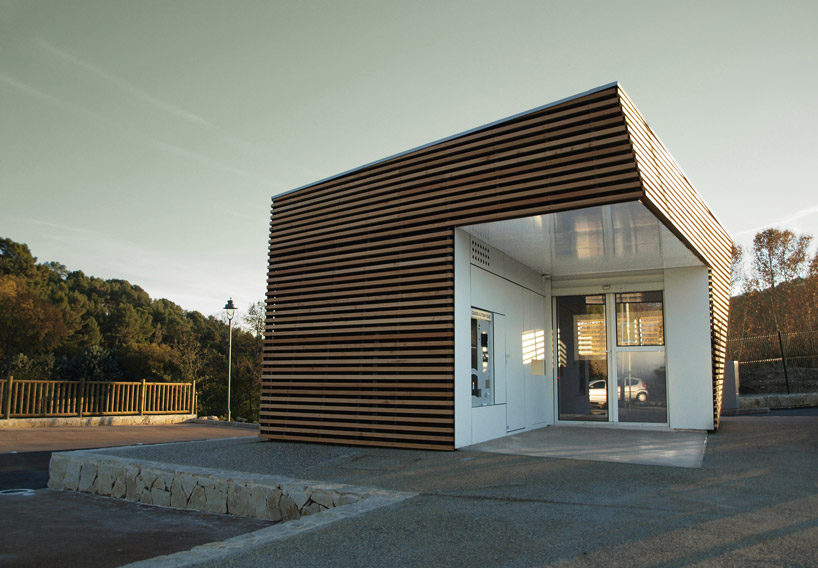

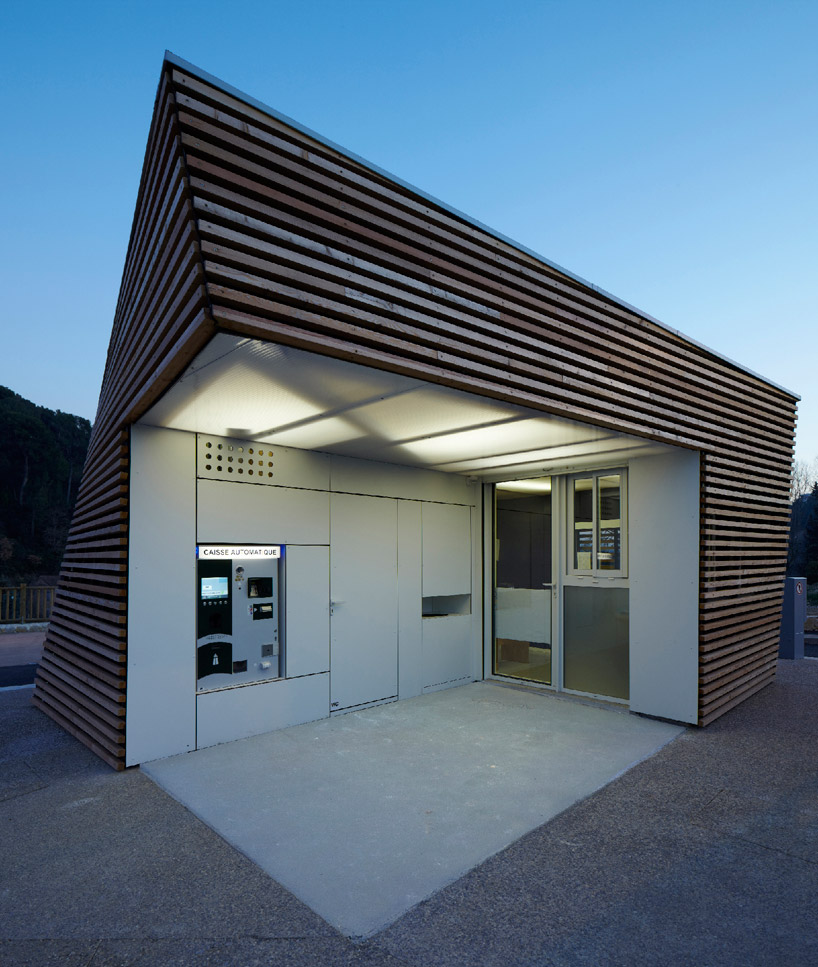

  entrance
  image ? philippe piron

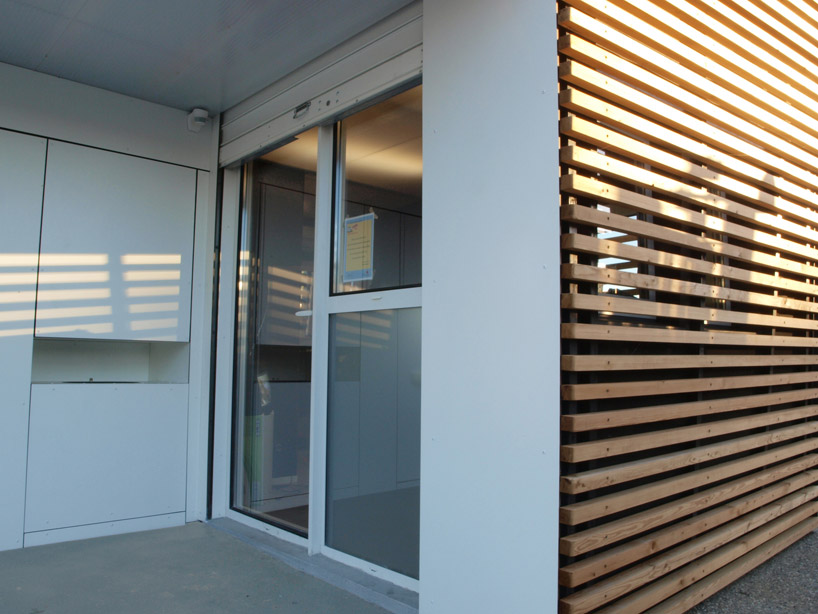

  entrance detail
  image ? philippe piron

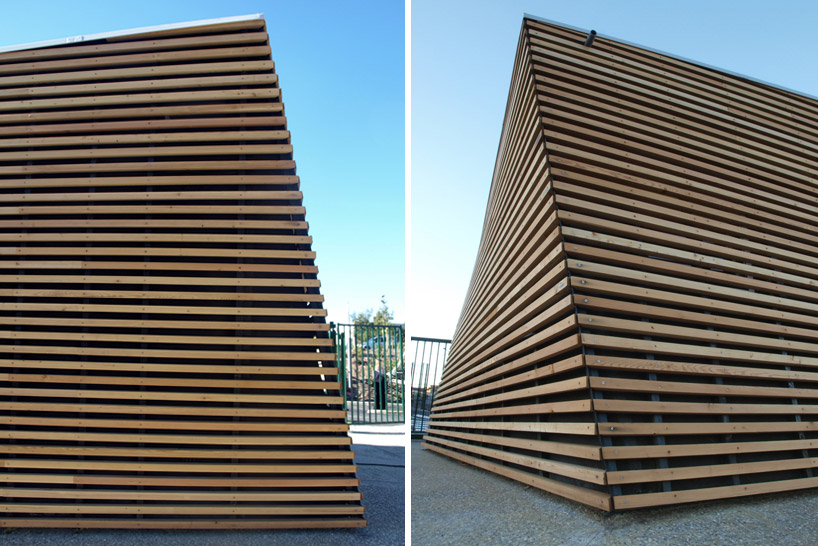

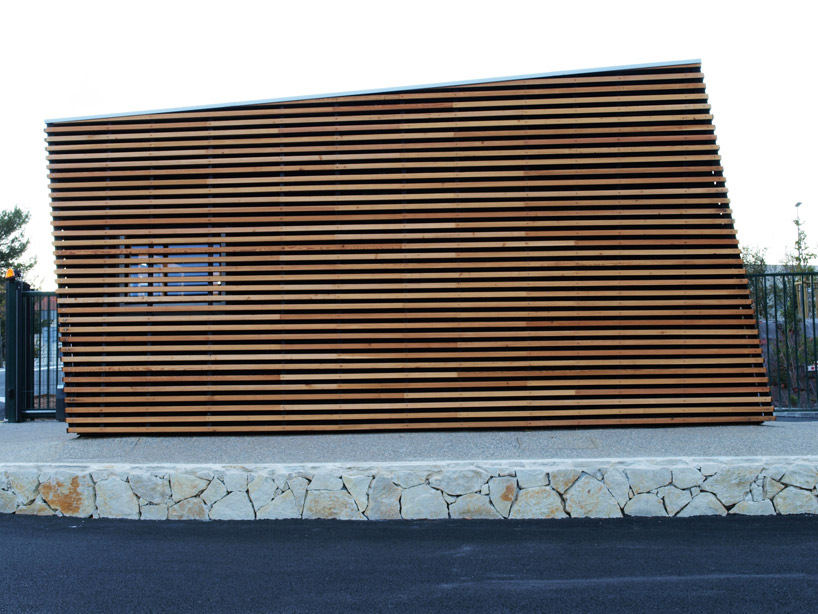

  south elevation


(left) southwest corner
    (right) southeast corner
    images ? philippe piron

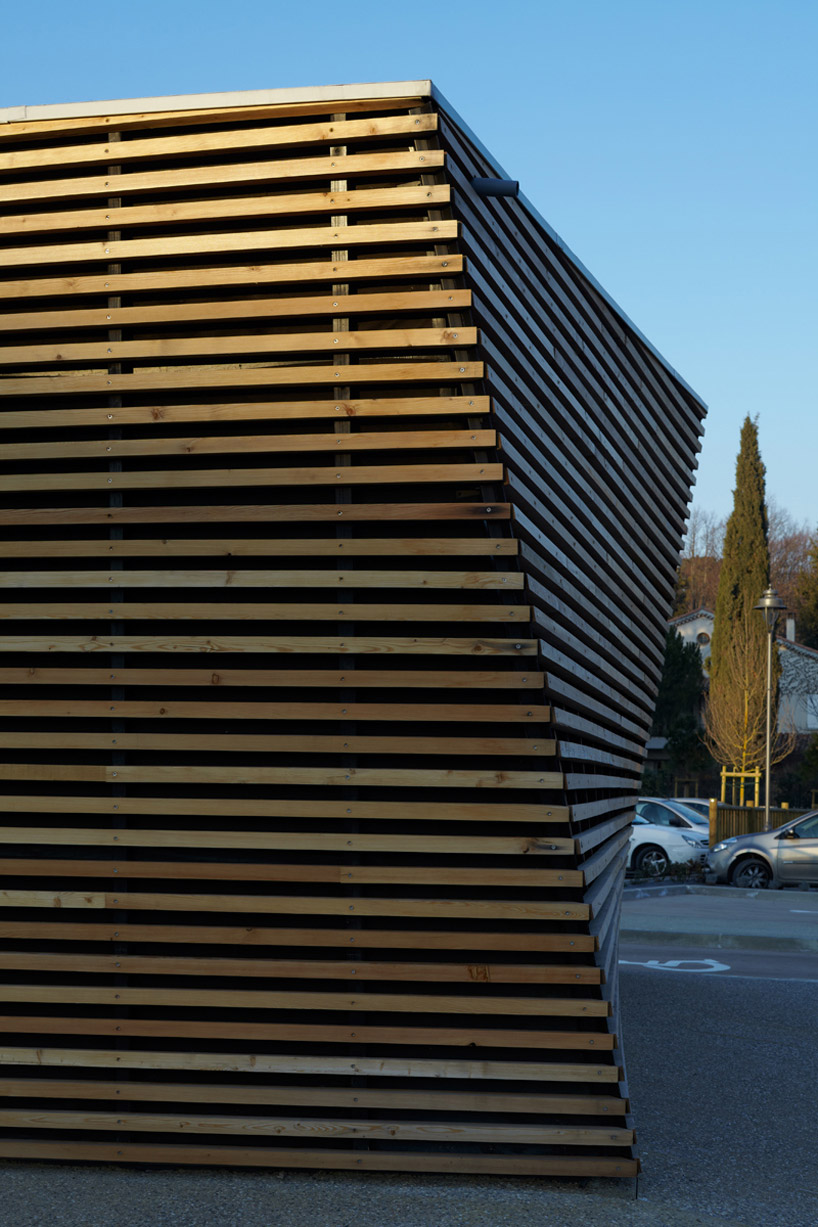

    corner detail
    image ? philippe piron


    facade detail
    image ? philippe piron


    lights are concealed within the canopy
    image ? philippe piron

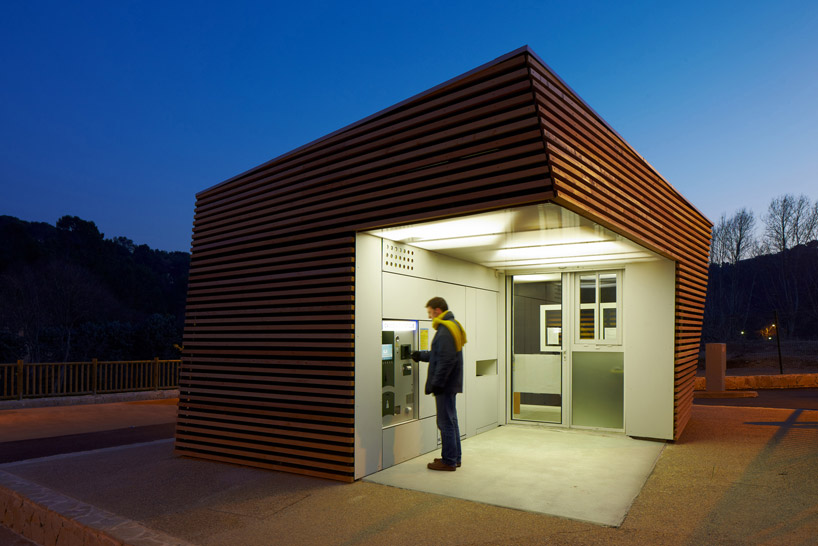

    illuminated at night
    image ? philippe piron


    secure surveillance window
    image ? philippe piron

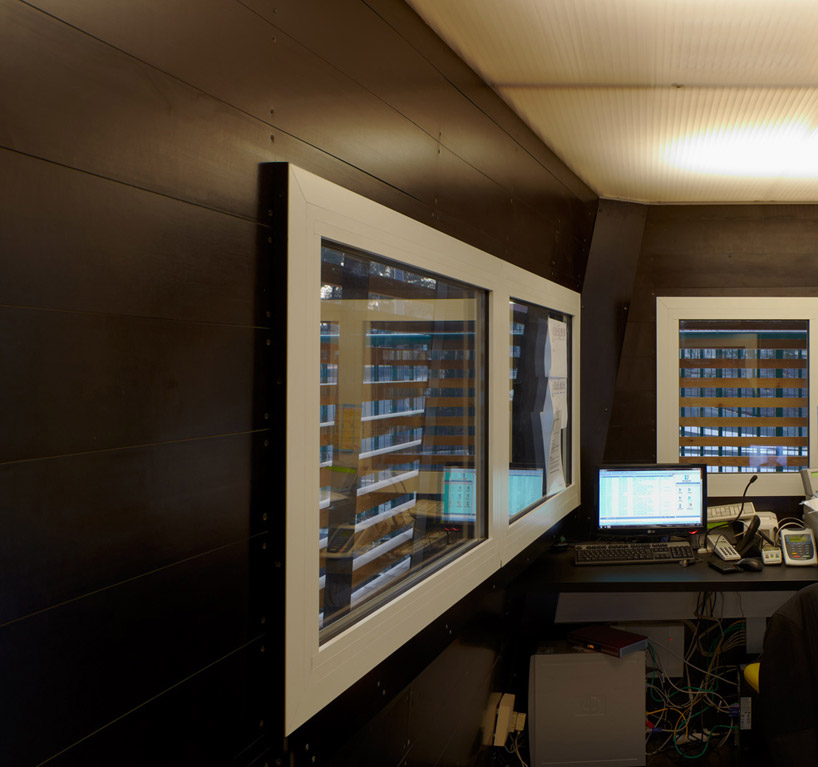

    interior
    image ? philippe piron

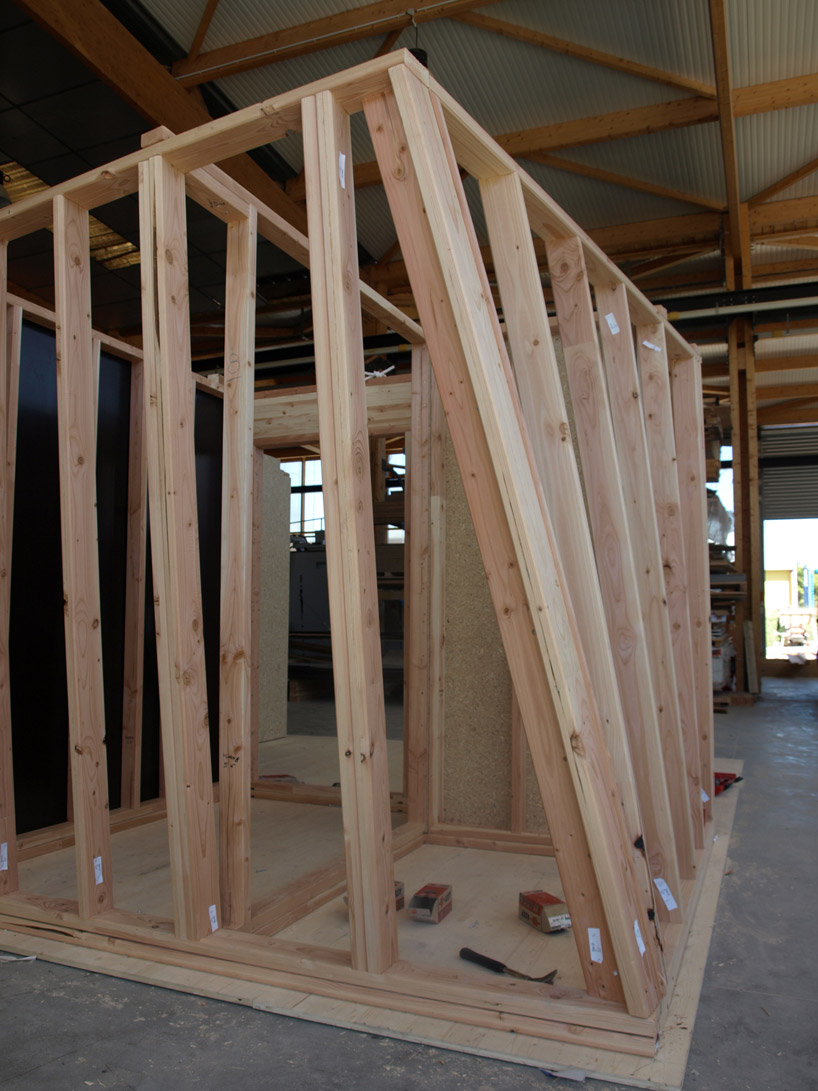

    construction of wooden framework
    image ? philippe piron

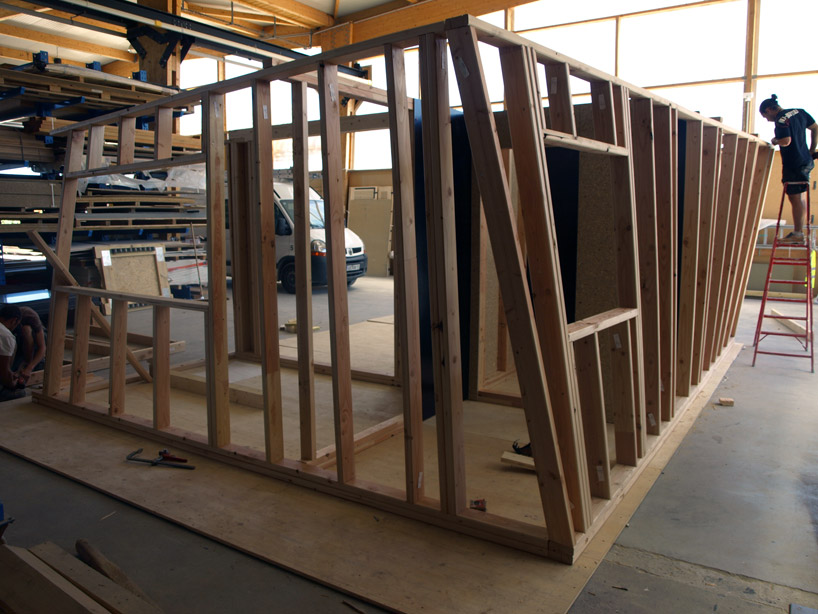

    lumber framing
    image ? philippe piron

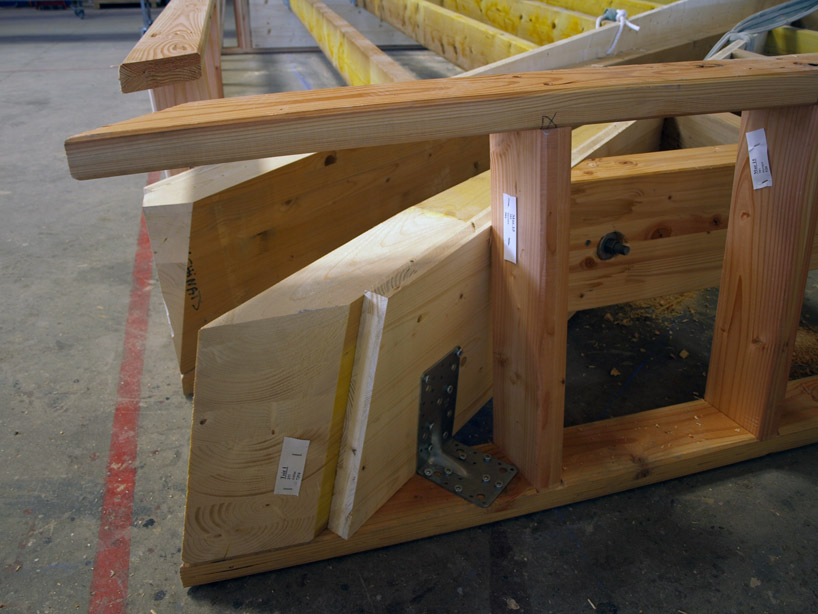

    building corner before assembly
    image ? philippe piron

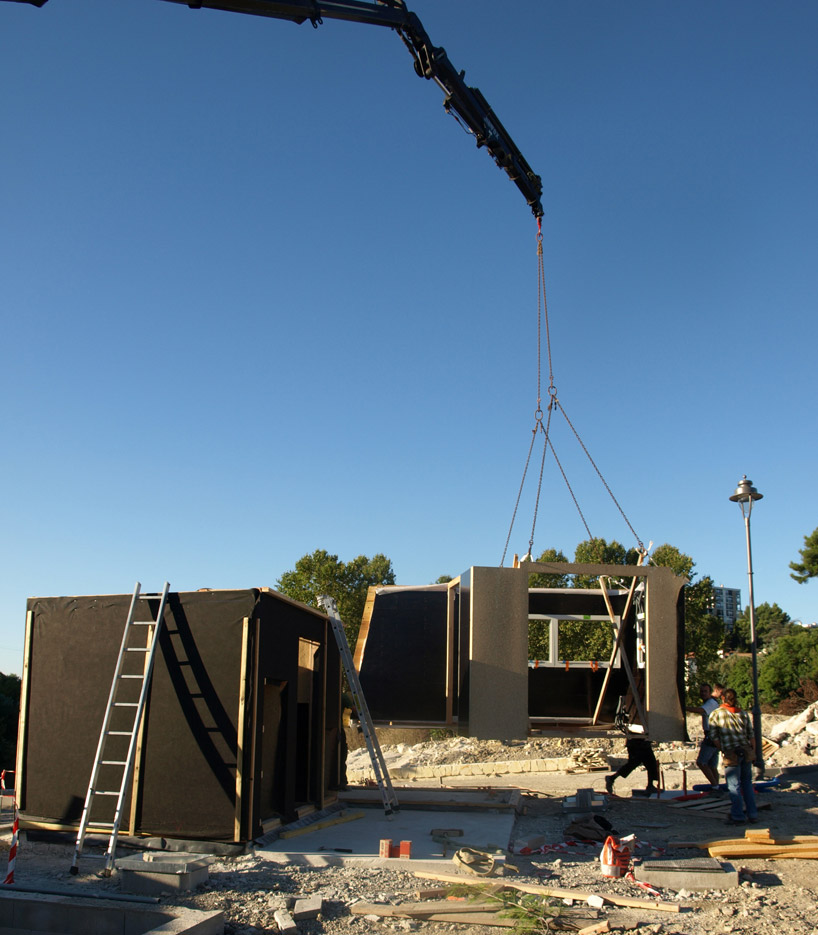

    installation of prefabricated frame
    image ? philippe piron

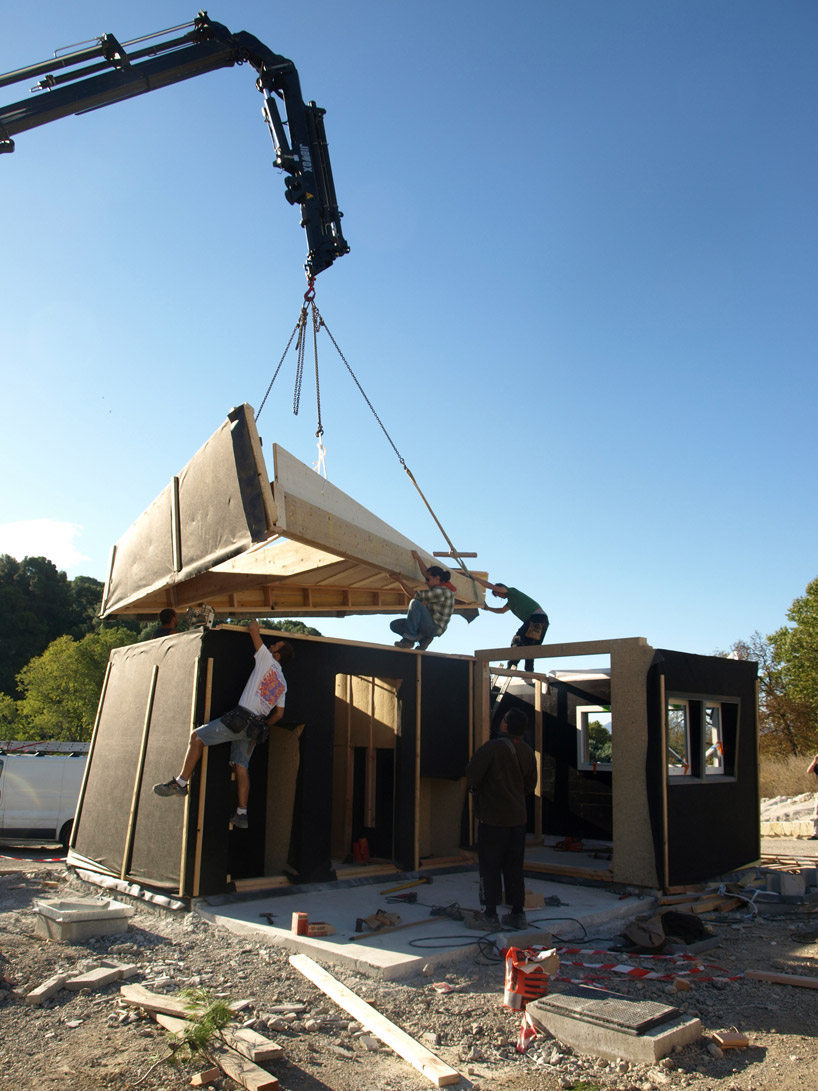

    installation of canopy
    image ? philippe piron

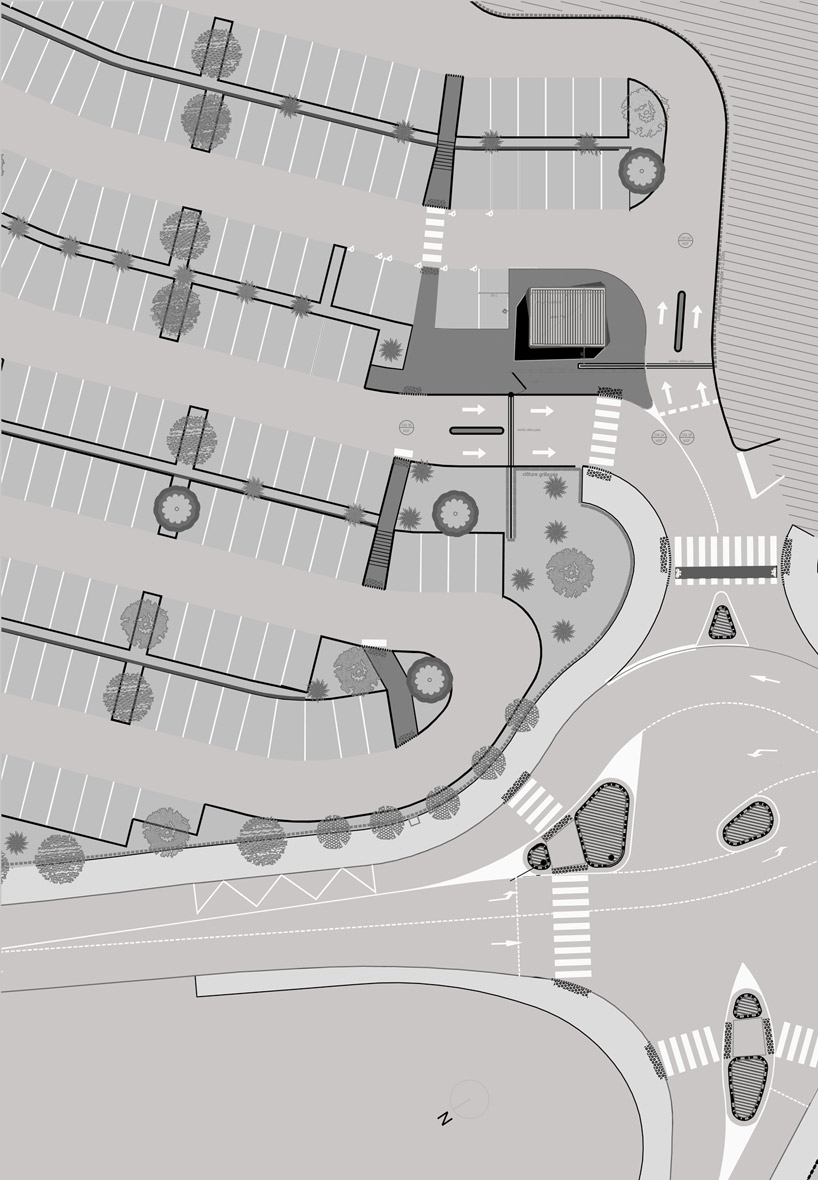

    site plan
    image courtesy jean-lug fugier

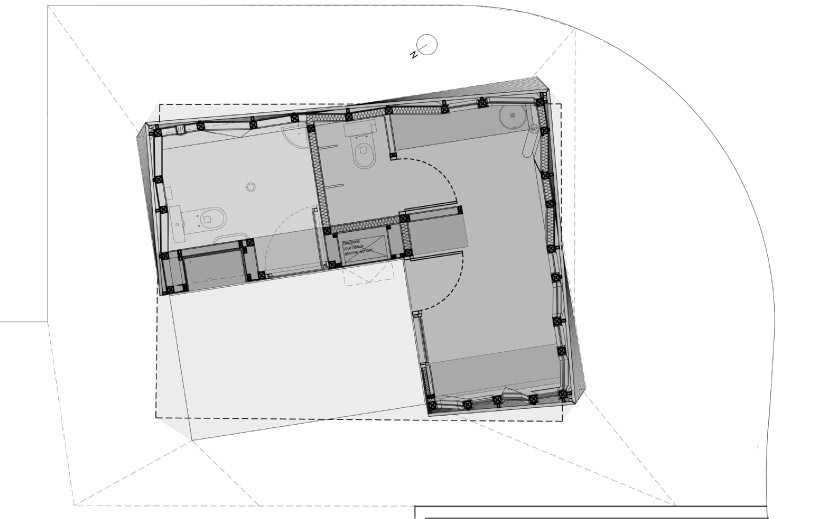

    floor plan / level 0
    image courtesy jean-lug fugier

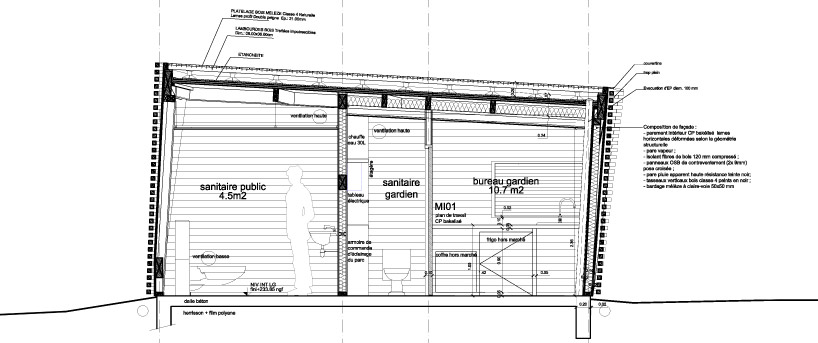

  section
  image courtesy jean-lug fugier

  project info:

  client: community of the pays d'aix - travel service -
  project manager: jean-luc fugier architect agent architecture associated fest.
  site: parking bridge road sisteron, north east entrance to town, aix en pce.
  programme: a lodge keeper equipped office space for surveillance, including sanitary and kitchen. a reception area
  with a public health pmr, bringing together the functions of information point and cash payment.
  mission type: full limited to building
  cost: 62 500 euros ht
  building area: 30 m2
  study duration: 9 months
  construction period: 3 months (including three weeks on site)
  delivery: december 2010
  lot 1 clot / cover: scoop triangle
  lot 2 second action: b. franzella
 |
