丹麦哥本哈根的地铁站

大陈

Station Hyllie by Metro Arkitekter


The circular roof of a metro station near Copenhagen looms over sunken platforms like a spotty UFO.
The station, designed by Swedish studio Metro Arkitekter, is located near to the airport on the route to the city centre.

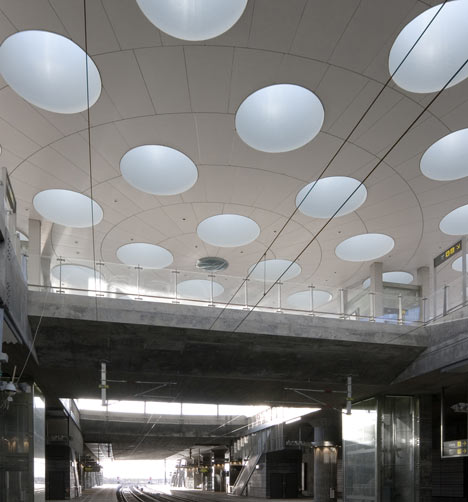

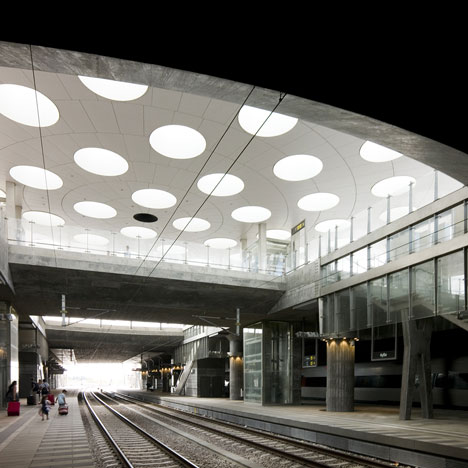

The 52 spots that perforate the round concrete roof are skylights that filter daylight through to the two platforms below.

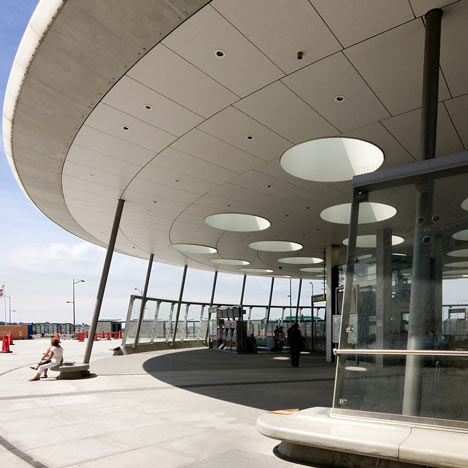

Narrow steel columns elevate the 45 metre-wide roof from behind curved glass partitions, which define the station's perimeter.

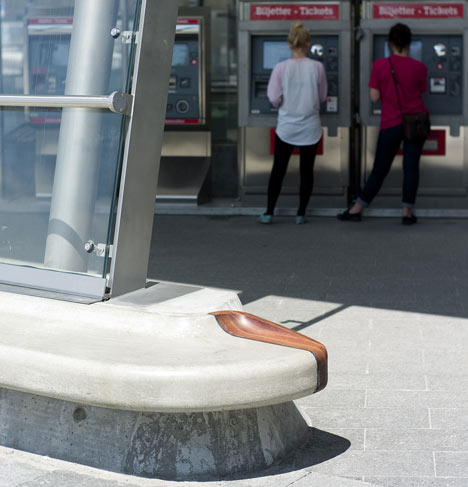

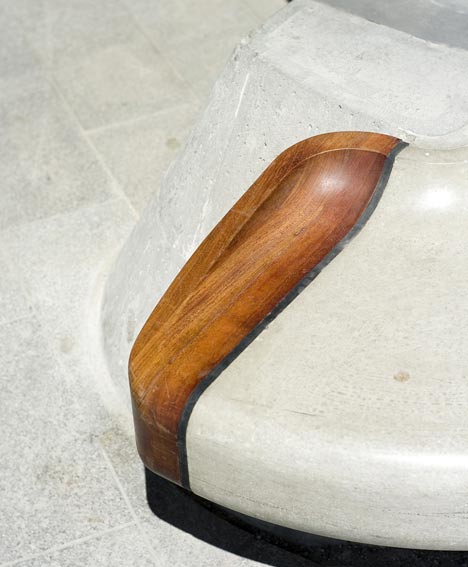

At the base of these partitions, a curved concrete bench with teak edges circles the station.





Photography is by Rafael Palomo.

Here's some more information from the architects:

Station Hyllie

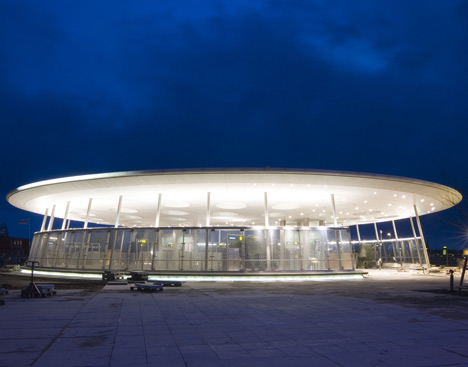

Hyllie is the first station you reach when travelling by train from Copenhagen's Kastrup airport and is therefore Malm?'s gateway to Copenhagen. This is no traditional station building – we have been working with other elements instead. The large round roof (diameter 45 m) – lit from below using uplights – hovers like a UFO above the station entrance. The roof is perforated by 52 round lantern lights which allow daylight to penetrate right down to the platforms, thereby eliminating any sense of an underground station. Daylight and lines of sight have acted as important parameters for creating a safe environment. The station is a regional and local train station with four tracks and two platforms. Bartenbach LichtLabor of Innsbruck are responsible for the lighting concept. The artistic decoration has been carried out by Kristina Matusch of Malm?.



Address: Hyllie Torg, Malm?
Architect: Metro Arkitekter AB through Claes R Janson (resp), Ola Arnholm (project architect), Carl Kylberg, Anna-Karin Joelsson (HL), J?rgen ?kerlund.
Other consultants: ?F/ Sweco, Tyrens, Sweco
Constructor: Jernhusen AB
Building contractor: NCC



Area: 10 000 sqm
Year: 2010
Material used: stainless steel structure, fiber concrete, fiber cement, concrete, glass, teak details and railings
