'parc de bombers' by arriola & fiol arquitectes in montblanc, france all images courtesy arriola & fiol arquitectes image ? infinite-light
barcelona-based practice arriola & fiol arquitectes (andreu arriola-madorell, carme fiol-costa)
has sent us images of 'parc de bombers', a two-storey fire station in montblanc, france. featuring a saw-tooth floor plan, the design is approached in a pragmatic manner, organizing the secondary functions around a central hall where the fire trucks are parked.

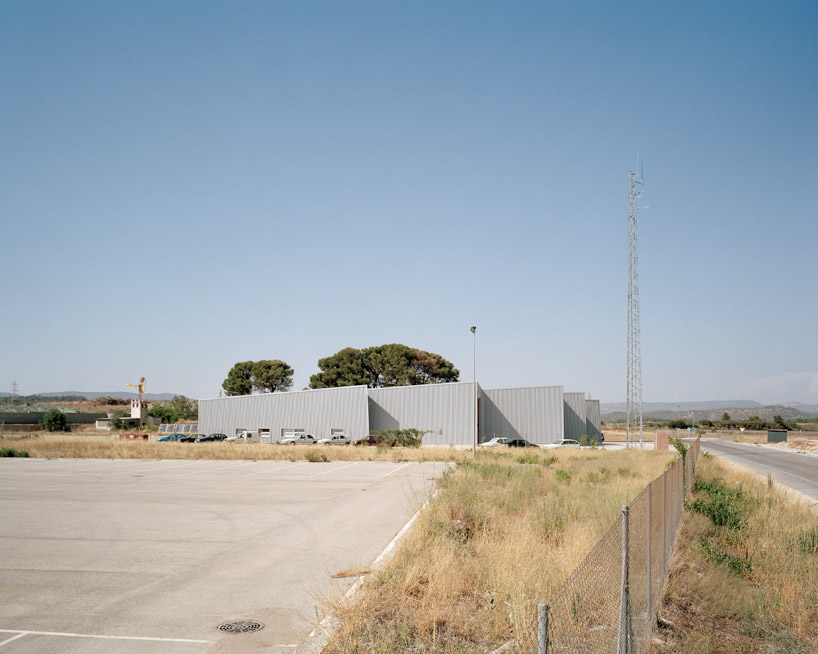

in context image ? infinite-light
lying low to the ground, the facility stands adjacent to a major road and fans open in its direction for easy access. four large garage doors are positioned at a slight angle from one another, pivoting around the central hall to enforce an efficient circulation of the trucks. this organization can be clearly read from the outside, resulting in a dynamic three-dimensional form that contrasts with the industrial nature of the site.

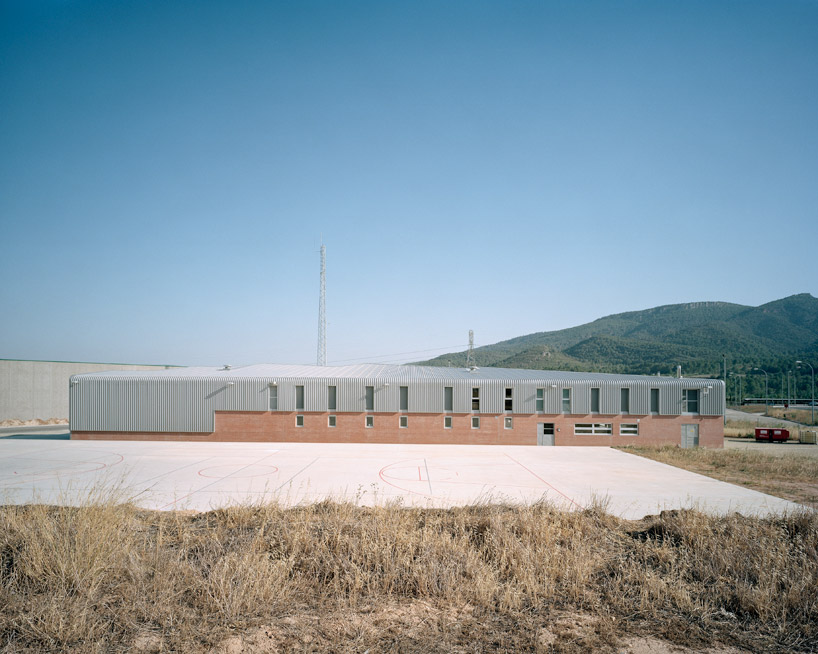

north elevation image ? infinite-light
image ? infinite-light
image ? infinite-light

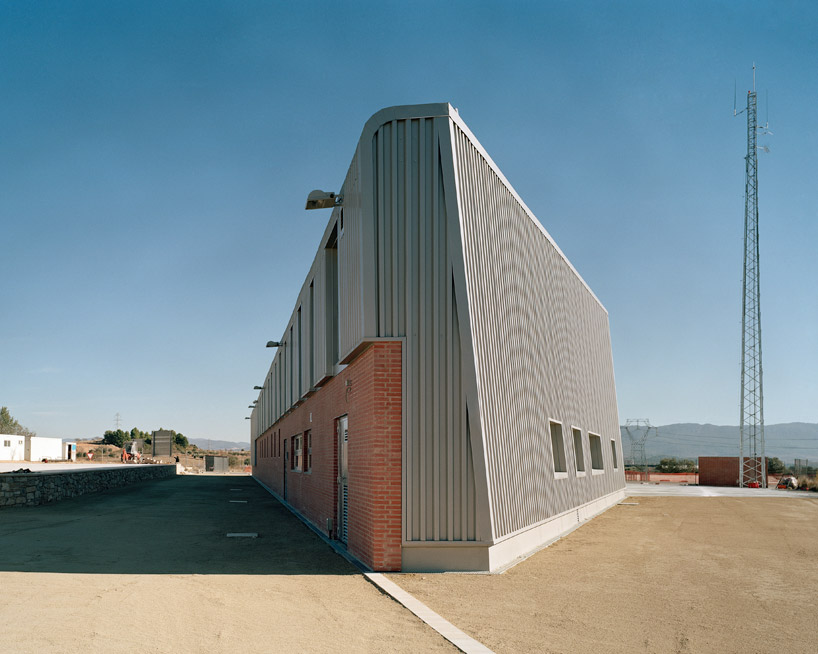

exterior view image ? infinite-light
garage doors closed image ? infinite-light

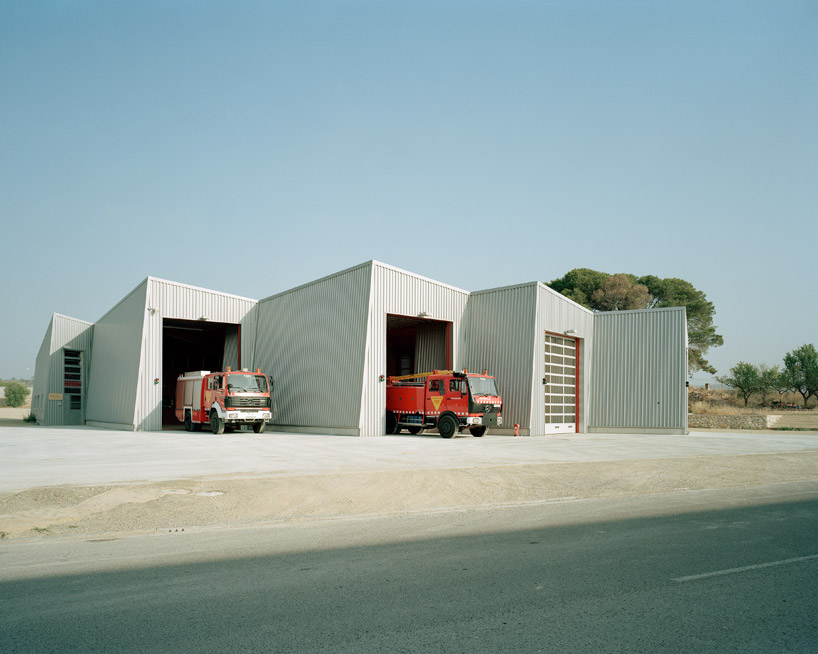

garage doors open image ? infinite-light
smaller programs such as the dining room, kitchen, meting area, and bedrooms are located on the second floor and are organized linearly along the north side of the layout. the main working area opens up to a double-height ceiling, enabling the second storey to overlook the space.

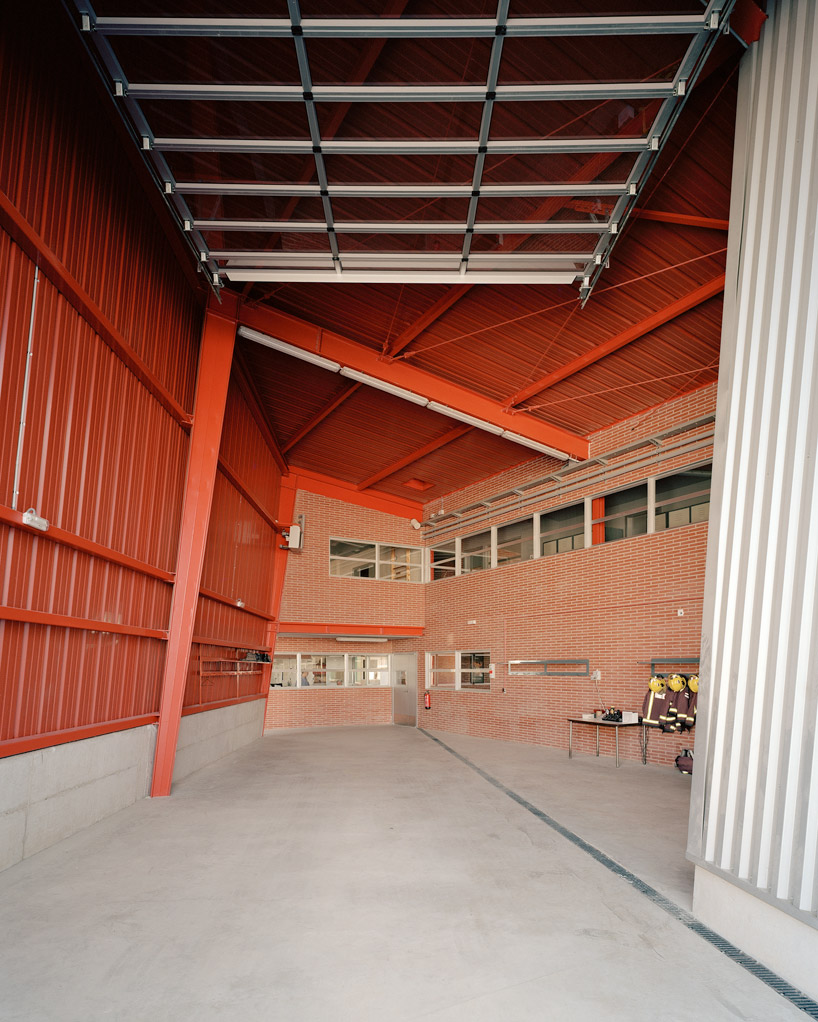

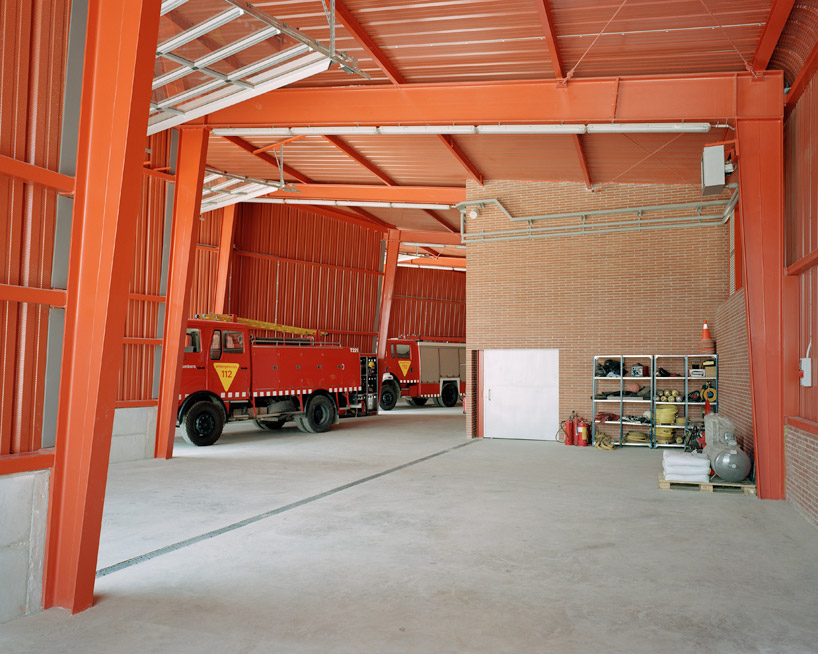

interior view of main hall image ? infinite-light
image ? infinite-light

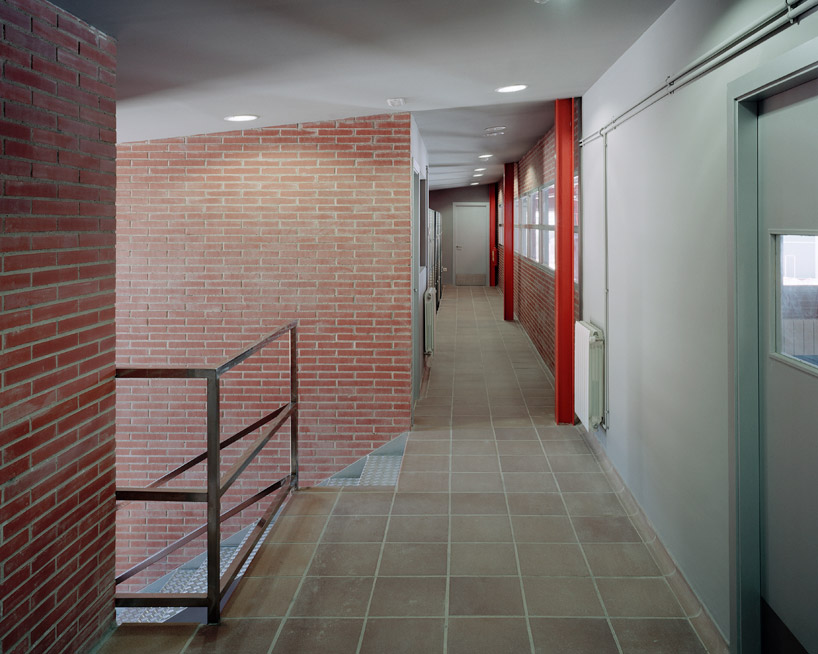

second storey corridor image ? infinite-light

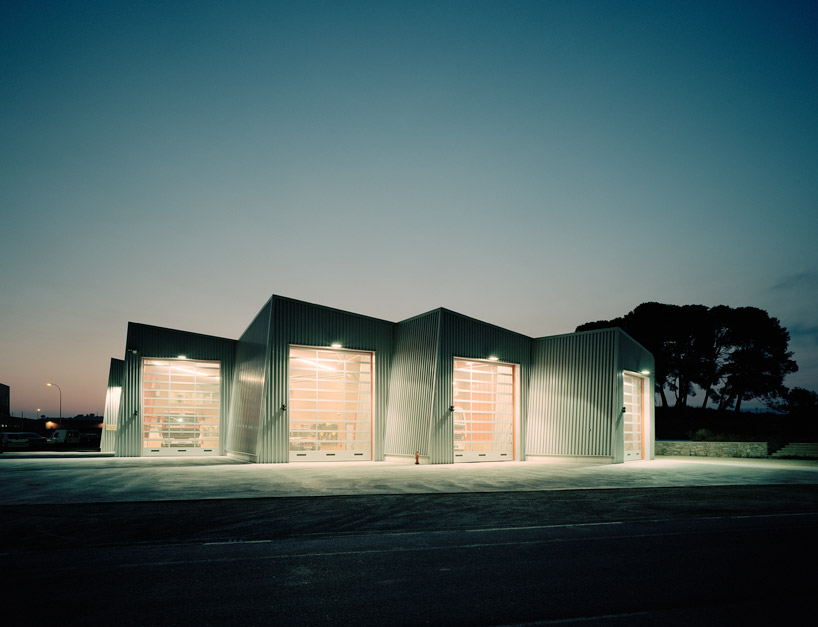

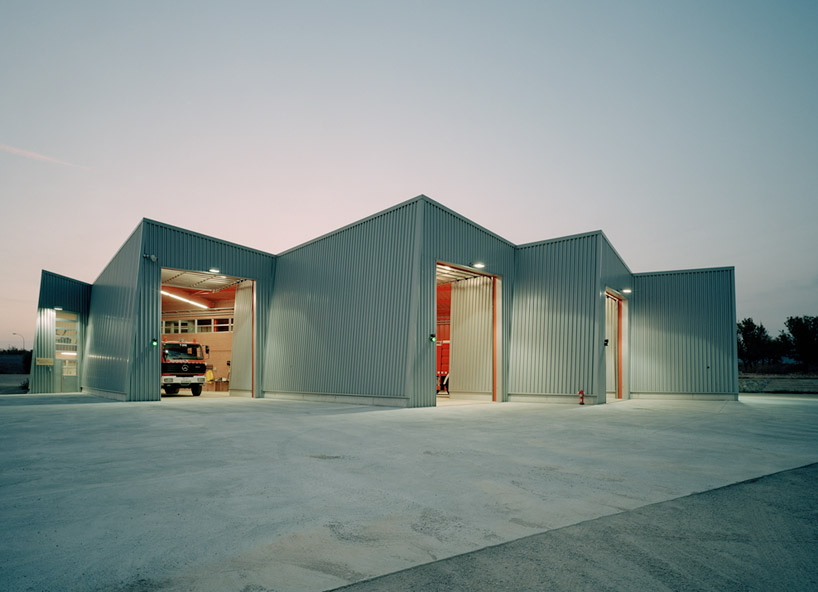

night view image ? infinite-light

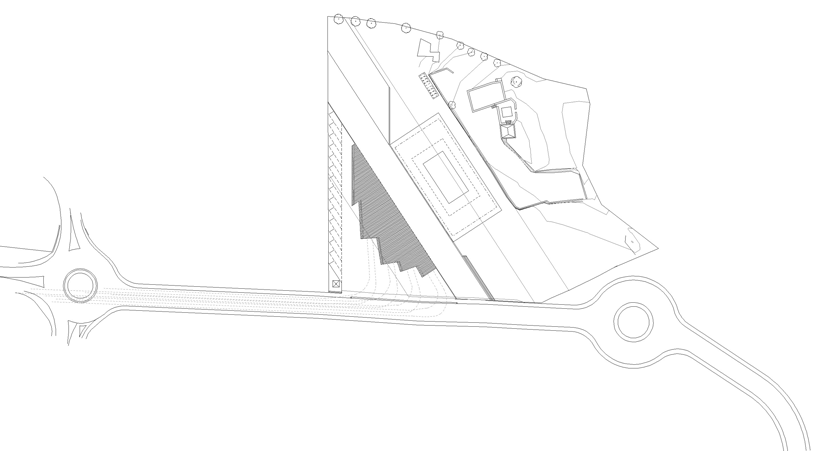

site map

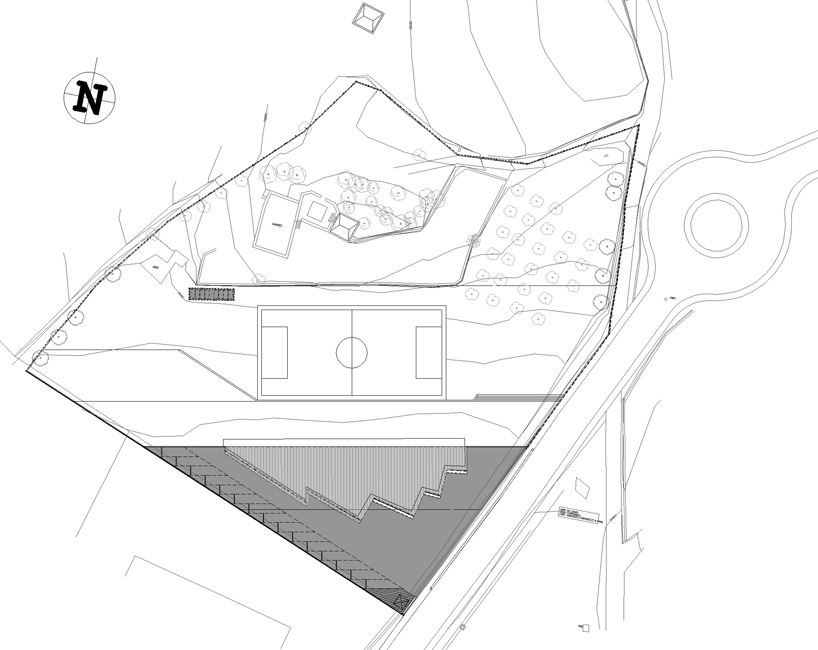

site plan
floor plan / level 0

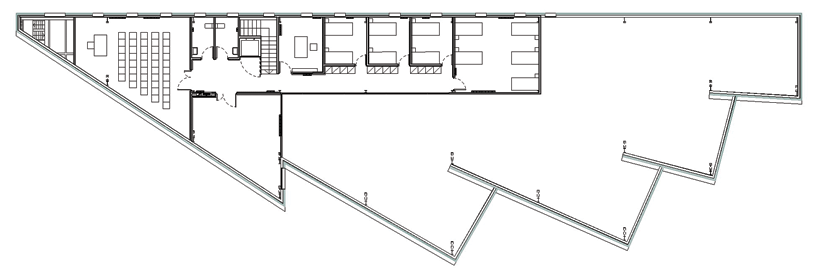

floor plan / level +1
|
|
